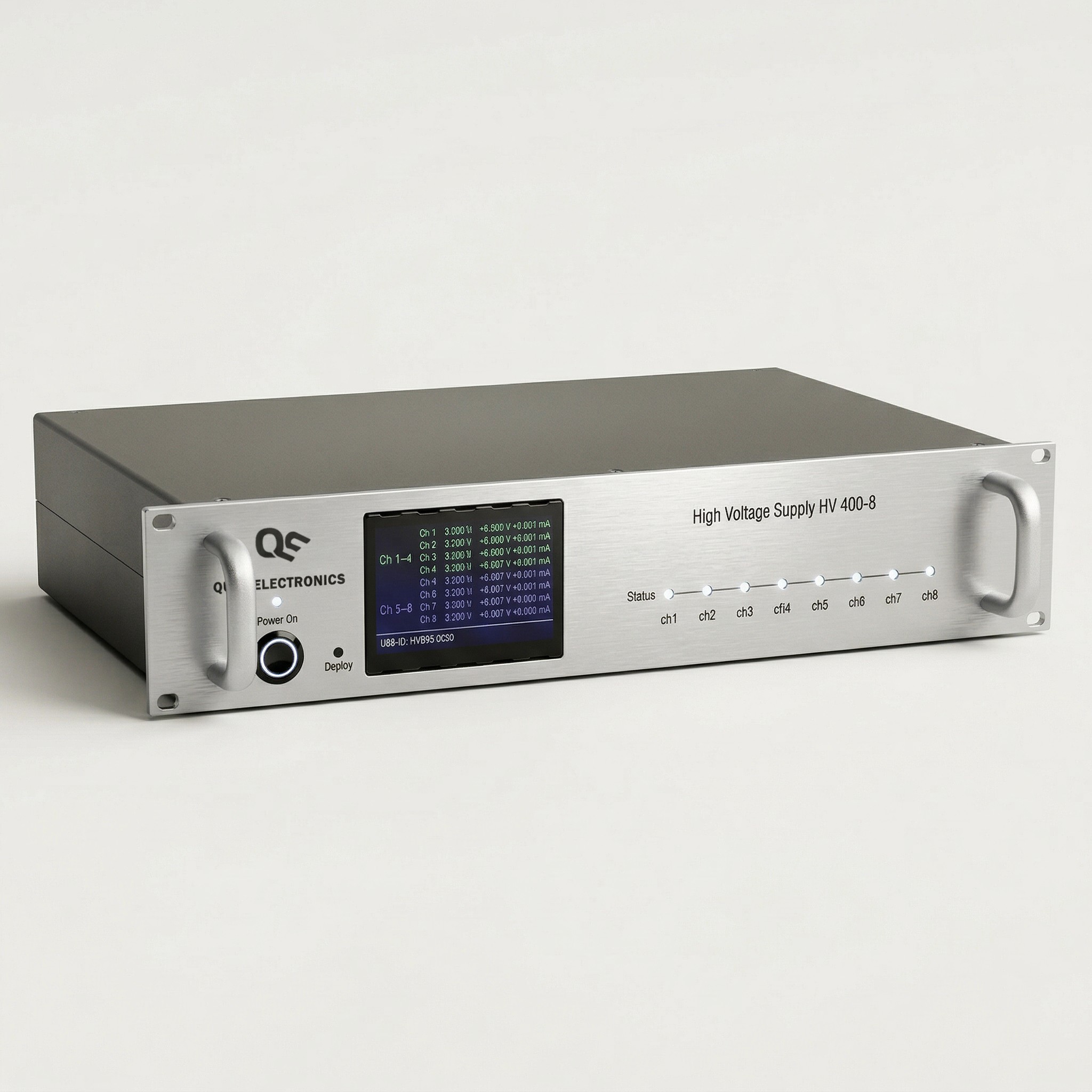

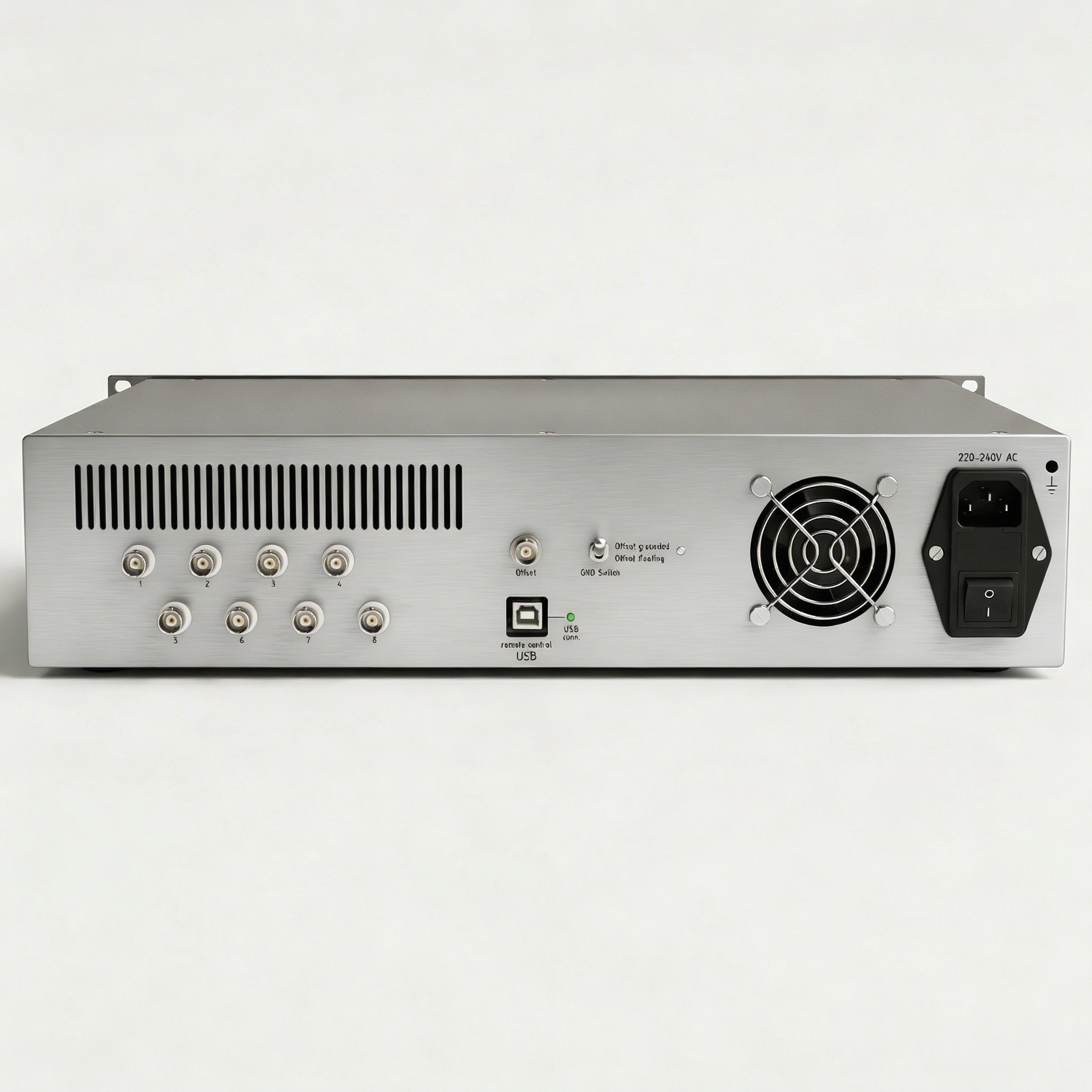

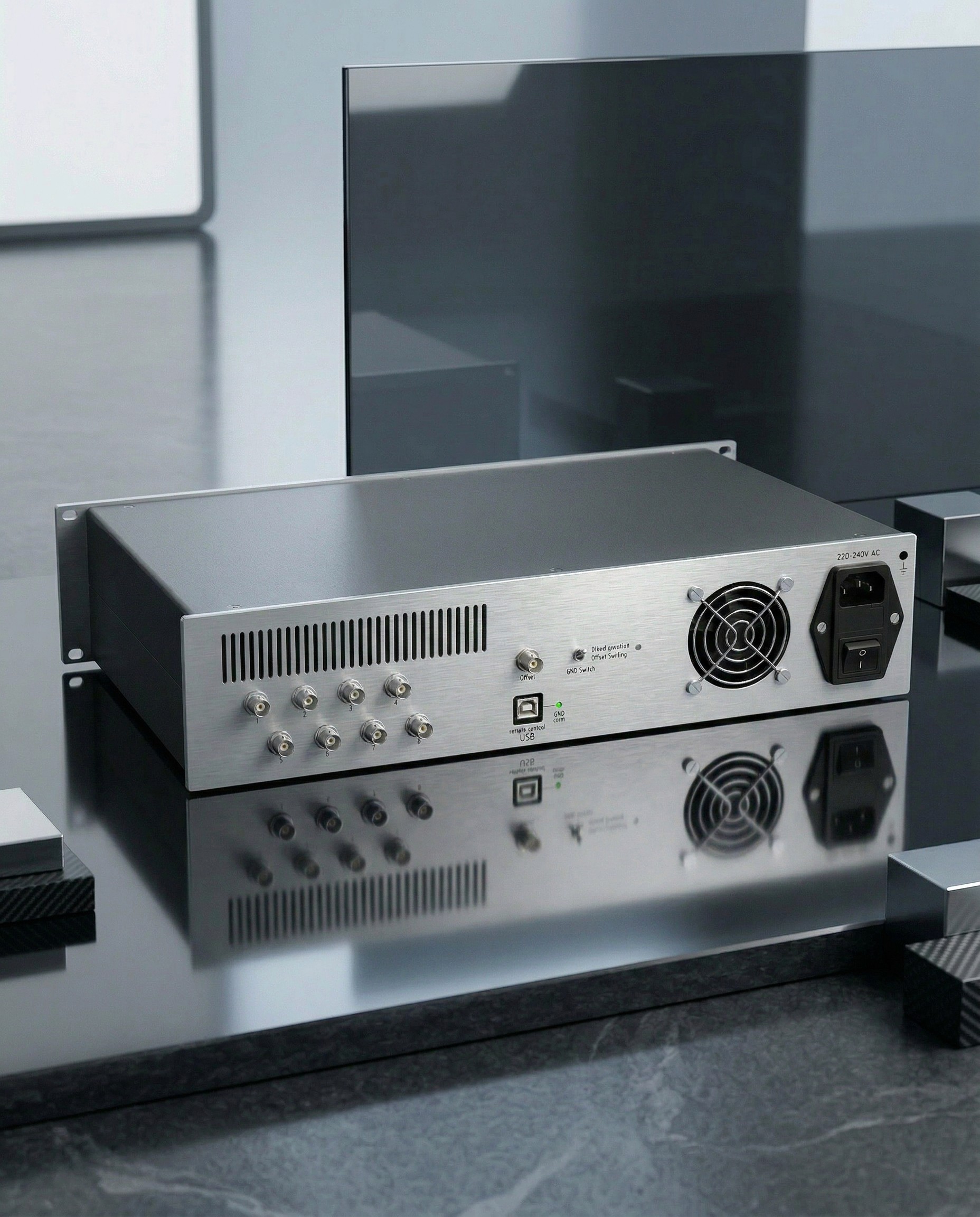

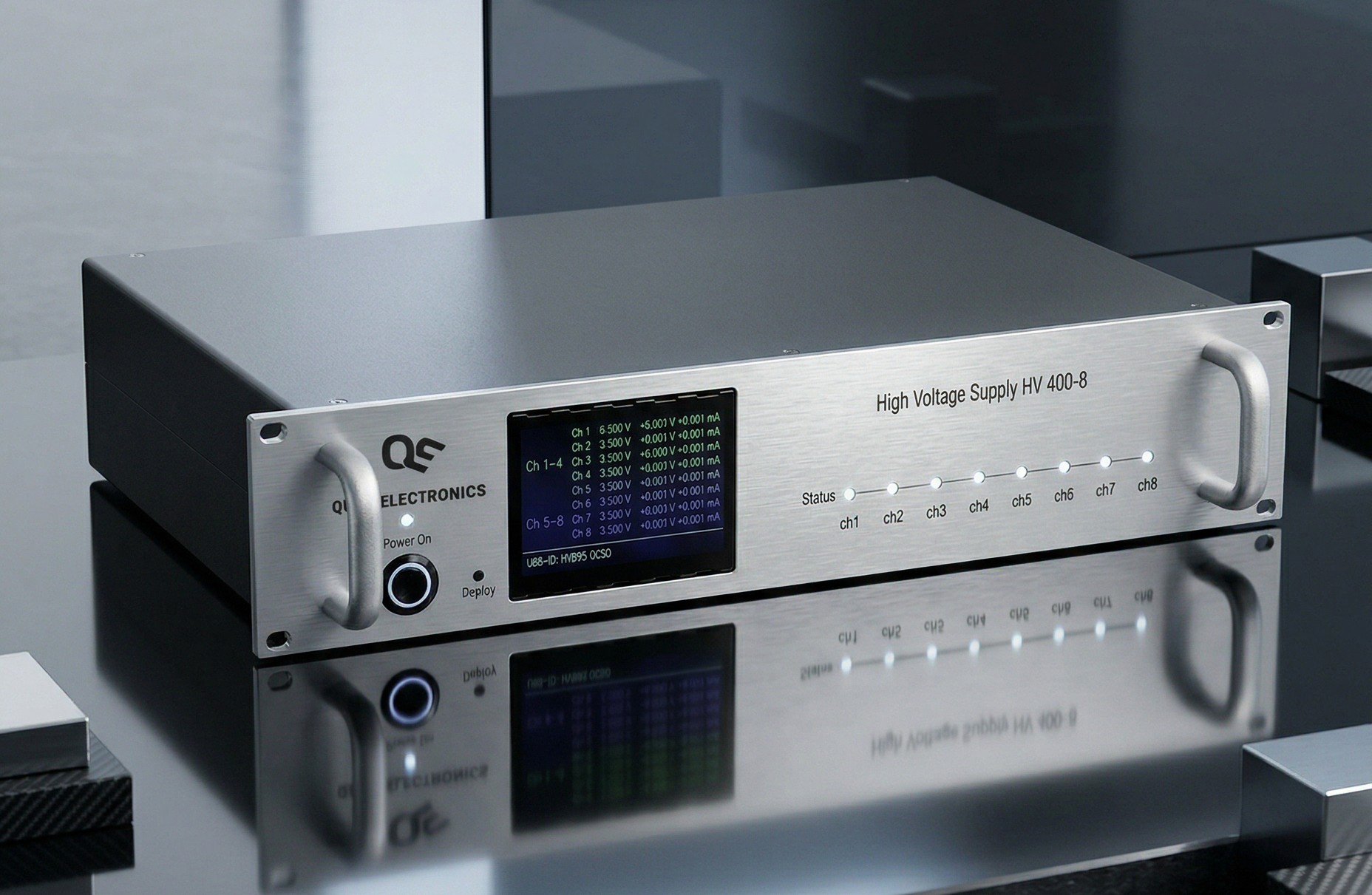

High Voltage Multichannel DC Power Supply

Precision Control | Low Noise | Ion Trap Ready

Key Applications

Paul trap quantum computing (DC electrode control & ion shuttling)

//01

Paul trap quantum computing (DC electrode control & ion shuttling)

//01

Multipole RF ion traps (linear, planar, segmented traps)

//02

Multipole RF ion traps (linear, planar, segmented traps)

//02

Penning trap experiments

//03

Penning trap experiments

//03

Ion transport and trapping systems

//04

Ion transport and trapping systems

//04

Key Features

High voltage DC electrode control for precise potential shaping

//01

High voltage DC electrode control for precise potential shaping

//01

Optimized for ion shuttling, splitting, and transport in segmented traps

//02

Optimized for ion shuttling, splitting, and transport in segmented traps

//02

Ultra low noise output to minimize motional heating of trapped ions

//03

Ultra low noise output to minimize motional heating of trapped ions

//03

ppm level stability for long duration quantum operations

//04

ppm level stability for long duration quantum operations

//04

Fully independent multichannel architecture (32 channels)

//05

Fully independent multichannel architecture (32 channels)

//05

Floating outputs to eliminate ground loops and cross coupling

//06

Floating outputs to eliminate ground loops and cross coupling

//06

Fast voltage update capability for dynamic trap control

//07

Fast voltage update capability for dynamic trap control

//07

High voltage DC electrode control for precise potential shaping

//01

Ultra low noise output to minimize motional heating of trapped ions

//03

Fully independent multichannel architecture (32 channels)

//05

Fast voltage update capability for dynamic trap control

//07

Optimized for ion shuttling, splitting, and transport in segmented traps

//02

ppm level stability for long duration quantum operations

//04

Floating outputs to eliminate ground loops and cross coupling

//06

Product Specifications

High Voltage Multichannel DC Power Supply for Precision Control | Low Noise | Ion Trap Ready

Parameter	Specification
Voltage Range	0 to ±400 V (expandable to higher ranges)
Channels	32 independent, expandable
Resolution	≤ 10 mV (≤ 1 mV optional)
Accuracy	≤ ±0.01% + few mV
Noise (10 Hz -1 MHz)	< 1 mV RMS
Stability	≤ 10-50 ppm/hour
Output Isolation	Fully floating outputs
Control Interface	USB / Ethernet / GPIB
