General Purpose Power Supplies

General Purpose Power Supplies




Key Applications

Key Applications

Quantum & ion trap experiments

//01
Quantum & ion trap experiments
//01

Battery charge–discharge testing

//02
Battery charge–discharge testing
//02

Semiconductor device characterization

//03
Semiconductor device characterization
//03

Solar cell (PV) testing

//04
Solar cell (PV) testing
//04

EV & power electronics testing

//05
EV & power electronics testing
//05

Sensor calibration (low-noise)

//06
Sensor calibration (low-noise)
//06

General laboratory R&D use

//07
General laboratory R&D use
//07

Key Features

Key Features

5 fully independent, isolated output channels

//01
5 fully independent, isolated output channels
//01

Bi-directional operation (source & sink capability)

//02
Bi-directional operation (source & sink capability)
//02

High precision voltage and current programming

//03
High precision voltage and current programming
//03

Low noise output for sensitive experiments

//04
Low noise output for sensitive experiments
//04

Fast transient response (< 50 µs)

//05
Fast transient response (< 50 µs)
//05

Built-in protection: OVP, OCP, OTP

//06
Built-in protection: OVP, OCP, OTP
//06

LAN & USB remote control (SCPI compatible)

//07
LAN & USB remote control (SCPI compatible)
//07

High-resolution digital display for each channel

//08
High-resolution digital display for each channel
//08

5 fully independent, isolated output channels

//01

High precision voltage and current programming

//03

Fast transient response (< 50 µs)

//05

LAN & USB remote control (SCPI compatible)

//07

Bi-directional operation (source & sink capability)

//02

Low noise output for sensitive experiments

//04

Built-in protection: OVP, OCP, OTP

//06

High-resolution digital display for each channel

//08

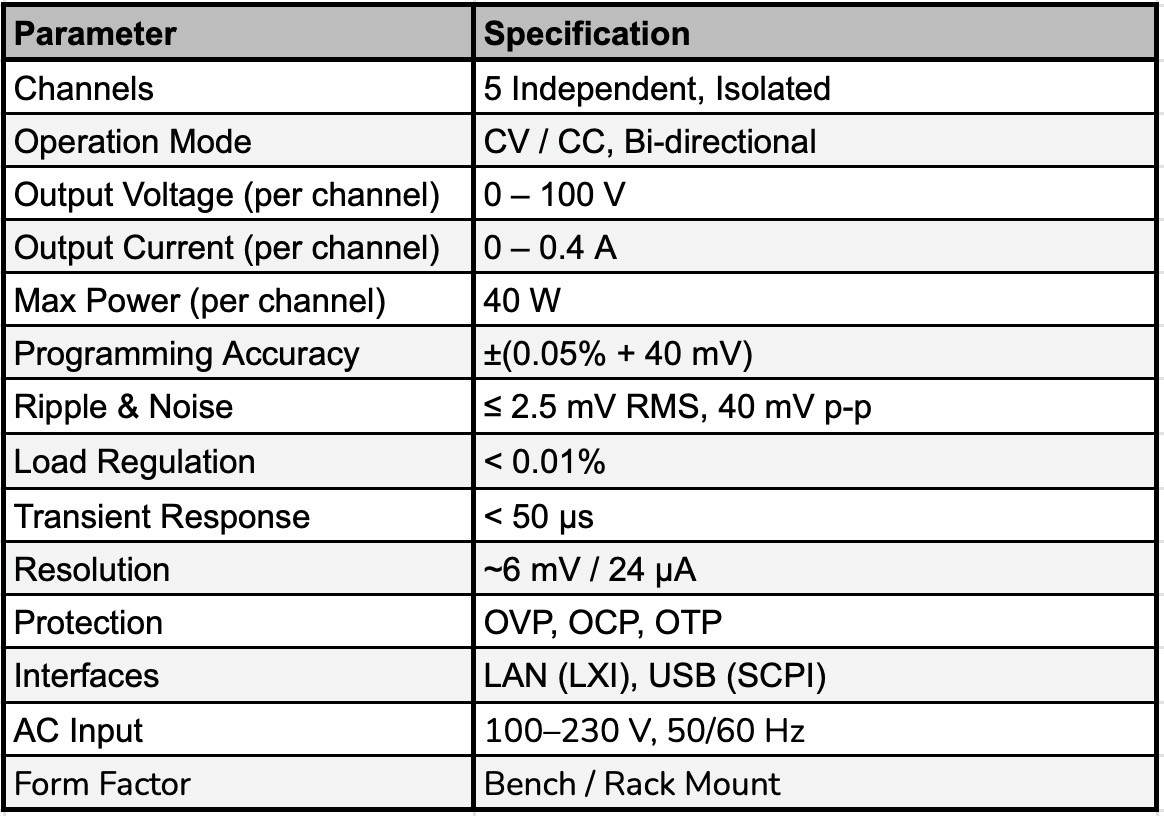

Product Specifications

Product Specifications

General Purpose Power Supplies

Parameters

Specification

Channels

5 Independent, Isolated

Operation Mode

CV / CC, Bi-directional

Output Voltage (per channel)

0-100 V

Output Voltage (per channel)

0 - 0.4 A

Max Power (per channel)

40 W

Programming Accuracy

±(0.05% + 40 mV)

Ripple & Noise

≤ 2.5 mV RMS, 40 mV p-p

Load Regulation

< 0.01%

Transient Response

< 50 µs

Resolution

~6 mV / 24 µA

Protection

OVP, OCP, OTP

Interfaces

LAN (LXI), USB (SCPI)

AC Input

100-230 V, 50/60 Hz

Form Factor

Bench / Rack Mount
