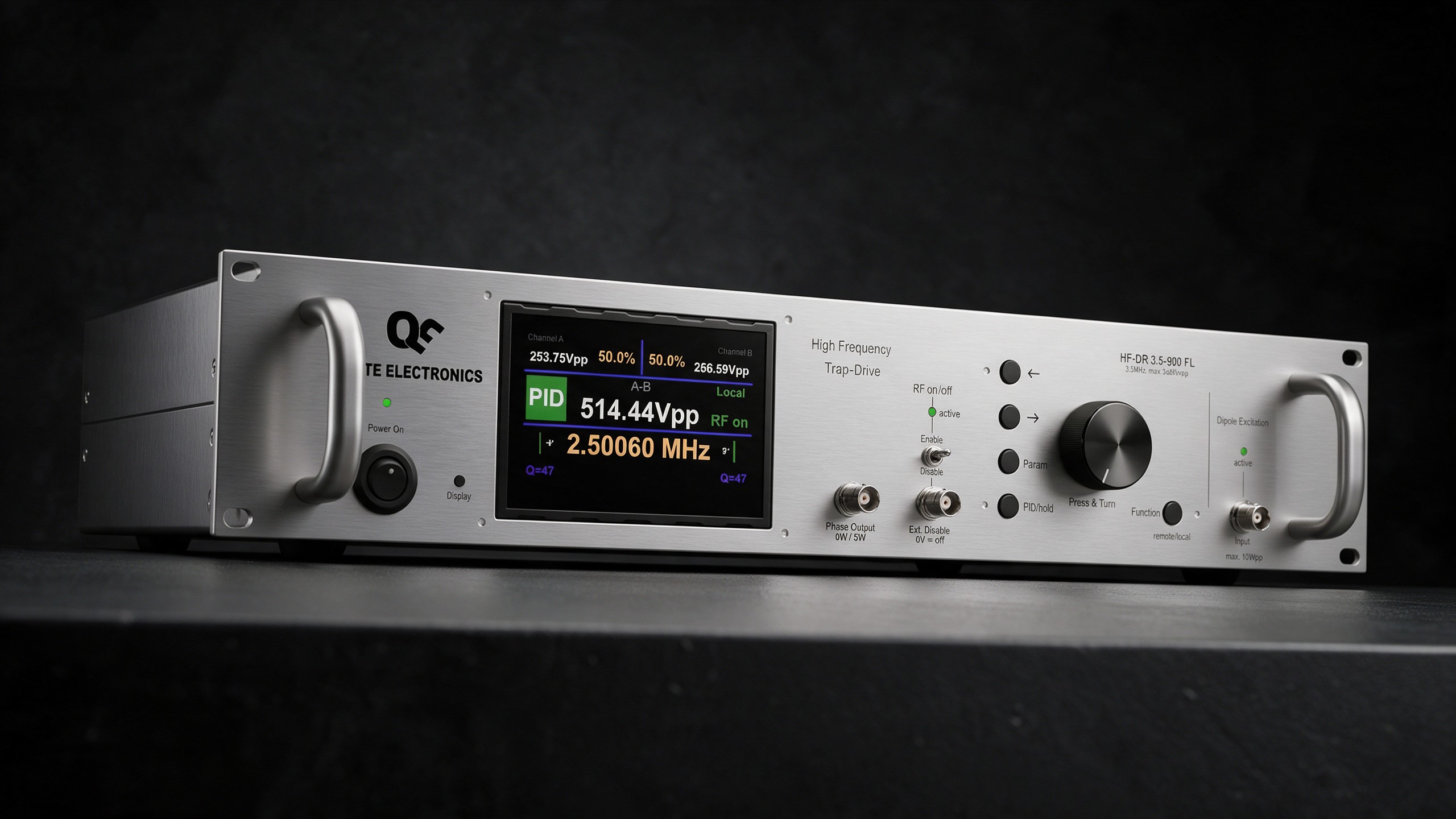

High-voltage sinusoidal RF drive with ppm-level amplitude stability and 180° differential outputs.
Designed for ion-trap experiments, quantum computing research, and precision electrode driving.
Where the High-Frequency RF Drive is used in ion-trap and precision physics setups.
Why This System Stands Out
High-Frequency RF Drive for Ion Trap Electrodes | Ultra-Stable Amplitude | Quantum-Ready Precision
Paramter | Specification |
|---|---|
RF Frequency | 1–40 MHz |
Output Voltage | Up to 3000 Vpp |
Output Configuration | Single / Dual |
Differential Phase | 180° |
RF Output Power | Typically 10 W, <20 W |
Capacitive Load | <50 pF per output |
Amplitude Stability | 30 ppm rms standard |
Enhanced Stability | 12 ppm rms @ 1 s |
Frequency Accuracy | 50 ppm standard / 1 ppm optional |
Harmonic Suppression | Typically 75 dB |
DC Offset | ±200 V / ±500 V optional |
Auxiliary Excitation | 0–10 Vpp, 50 Ω |
RF Ramping | 1–20 Vpp/µs |
Control Interface | USB / PC Control |
Form Factor | 19-inch Rack Mount |
