Ultra-High Precision Multichannel DC Current Source

Ultra-High Precision Multichannel DC Current Source

Ultra-Stable | Low Noise | Quantum-Grade Biasing

Redshift® by future things

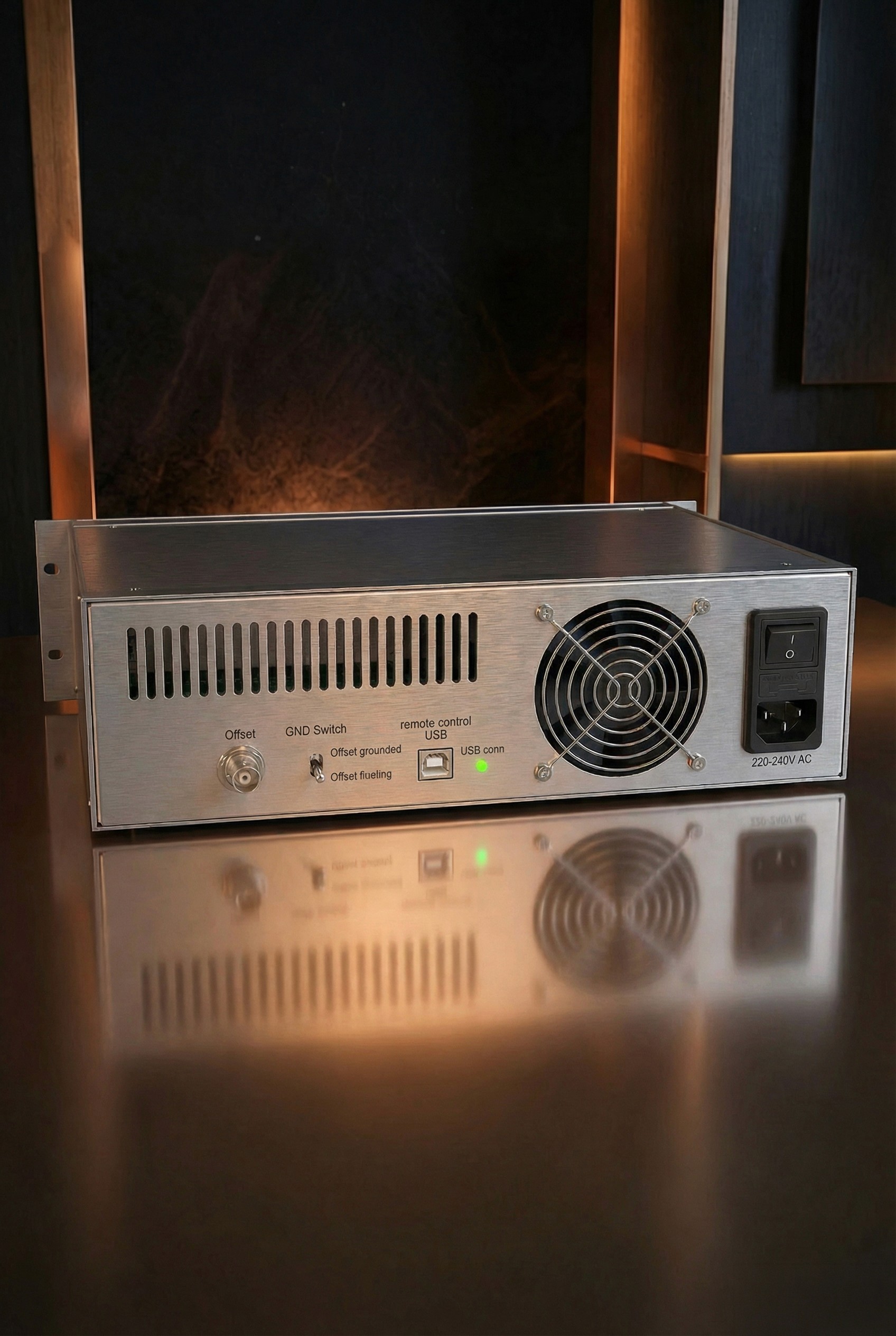

Back Precision DC Voltage Source

Key Applications

Key Applications

Flux based superconducting qubits (flux, fluxonium, tunable transmons)

//01
Flux based superconducting qubits (flux, fluxonium, tunable transmons)
//01

Cryogenic device control

//02
Cryogenic device control
//02

Semiconductor characterization (ATE)

//03
Semiconductor characterization (ATE)
//03

Precision metrology

//04
Precision metrology
//04

Key Features

Key Features

Why This System Stands Out

Ultra low noise DC current source

//01
Ultra low noise DC current source
//01

ppm level stability for long experiments

//02
ppm level stability for long experiments
//02

Fully isolated channels (no common GND)

//03
Fully isolated channels (no common GND)
//03

Fast response (ms scale)

//04
Fast response (ms scale)
//04

Scalable multichannel architecture

//05
Scalable multichannel architecture
//05

Ultra low noise DC current source

//01

Fully isolated channels (no common GND)

//03

Scalable multichannel architecture

//05

ppm level stability for long experiments

//02

Fast response (ms scale)

//04

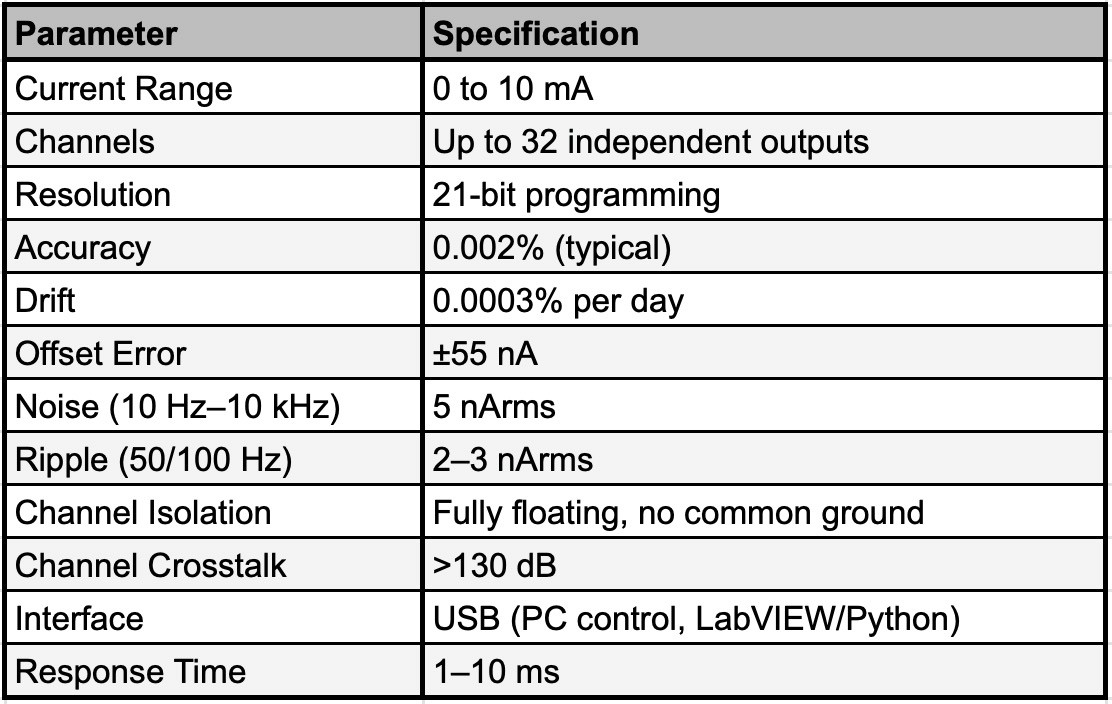

Product Specifications

Product Specifications

Precision Multichannel DC Current Source for Ultra Stable | Low Noise | Quantum Grade Biasing

Parameter

Specification

Current Range

0 to 10 mA

Channels

Up to 32 independent outputs

Resolution

21-bit programming

Accuracy

0.002% (typical)

Drift

0.0003% per day

Offset Error

±55 nA

Noise (10 Hz-10 kHz)

5 nArms

Ripple (50/100 Hz)

2-3 nArms

Channel Isolation

Fully floating, no common ground

Channel Crosstalk

>130 dB

Interface

USB (PC control, LabVIEW/Python)

Response Time

1-10 ms
